Sustainable Ai Data Centers - A white paper

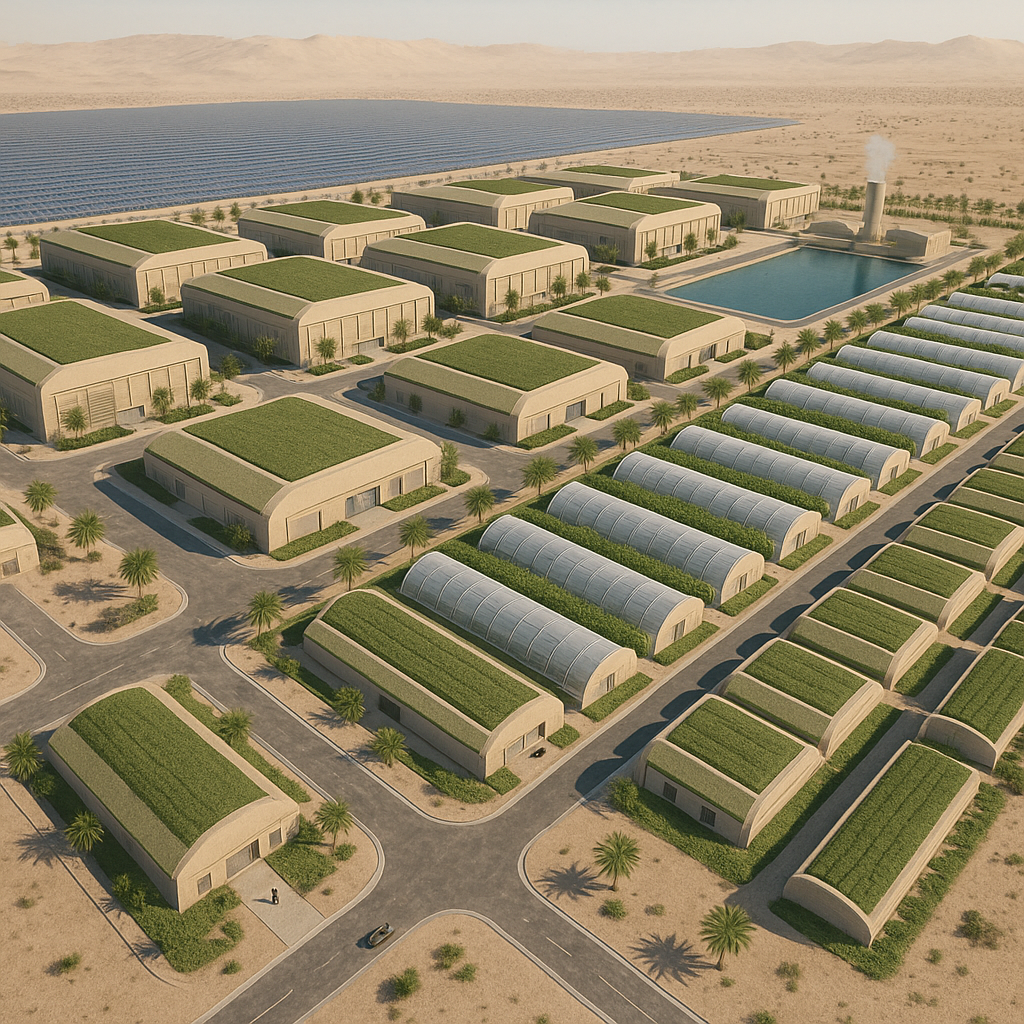

Merlin Green Data Center + Farm Integration Model
Executive Summary
This concept integrates FRP-based, earth-sheltered data centers with Merlin Farms aquaponics and desalination systems. The goal is to turn data centers from energy sinks into circular economy hubs that provide IT services, water, and food security for the UAE.
---
1. Data Center Construction with FRP Panels & Earth Sheltering
FRP Panels: Provide lightweight, modular, corrosion-resistant, and fire-rated structures. Reduce construction CAPEX by ~20% vs conventional builds.
Thermal Efficiency: FRP panels offer high insulation value, cutting cooling OPEX by ~30%.
Earth-Sheltering: Berming or partially burying facilities stabilizes temperatures, reducing external solar heat load. Estimated additional 10–15% cooling savings.
Resilience: FRP + soil mass create robust protection against Dubai’s heat, humidity, and sandstorms.
---
2. Waste Heat Recovery from Data Centers
Liquid Cooling Loops: Capture warm water at 40–60 °C, ideal for reuse.
Current Practice: Most data centers reject this heat into the atmosphere.
Merlin Approach: Redirect waste heat for:
Membrane Distillation (MD): Pre-heating saline feedwater to boost desalination yields.
Solar Desalination Hybridization: Raising baseline water temperatures to improve evaporation efficiency.
Aquaponic Support: Using warm water to stabilize tank and greenhouse conditions.
---
3. Water Production Synergy
Membrane Distillation (MD): Operates effectively at low-grade heat (50–80 °C).
Integration Potential: One 10 MW data center can provide tens of MW of waste heat, enough to desalinate millions of liters/day.
Outcome: Converts a liability (waste heat) into a strategic resource for agriculture.
---
4. Aquaponic Farming Synergy
Temperature Stabilization: Waste heat maintains aquaponic tank temperatures at night, reducing electric heating loads.
Cooling via Absorption Chillers: Waste heat can also drive Li-Br chillers, providing cooling for farms during hot months.
Resource Nexus: Data center → heat → water → food.
---
5. Financial & Sustainability Impact
CAPEX Savings: 20% lower build cost with FRP panels.
OPEX Savings: 30–40% less cooling demand through FRP + earth sheltering.
Water Offset: Waste heat desalination reduces external water procurement.
Carbon Reduction: Turning waste heat into desalinated water + food lowers lifecycle emissions.
(A) earth-sheltered FRP insulation (to cut cooling), (B) membrane distillation (MD) to turn waste heat into water, and (C) year-round organic aquaponic production.
---
A) Ultra-efficient envelope: FRP + earth sheltering
What it is: Lightweight, modular FRP panels bermed/covered with soil and high-R insulation; airtight with controlled ventilation.
Why it matters:
Lower heat gain: Earth and high-R roof/walls slash solar & conductive loads.
Lower PUE: With the same IT load, non-IT cooling load drops (often 20–40%).
Right-sized cooling: Smaller chillers/dry coolers; easier heat rejection in Dubai peaks.
Result: A 5 MW IT hall can move from ~PUE ≈ 1.25 → ~1.10–1.15 just by envelope + controls and liquid cooling adoption.
---
B) Waste-heat → water: Membrane Distillation (MD)
What it is: Low-temperature (≈50–80 °C) thermal desal that thrives on low-grade heat.
Heat source: Rear-door or direct-to-chip liquid cooling loops (40–60 °C) + condenser heat.
How it fits:
1. Capture hot water from the IT loop.
2. Feed an MD or MD+solar hybrid skid.
3. Produce potable/near-potable water; manage brine with ZLD or mineral recovery.
Order-of-magnitude example (from our earlier model):
5 MW IT → ~90% to heat; assume 60% usable at MD inlet → ~2.7 MWth.
Daily thermal energy ≈ 64,800 kWh(th)/day.
MD specific thermal energy (STEC) scenarios:
Conservative: 200 kWh(th)/m³ → ~325 m³/day water
Base: 120 kWh(th)/m³ → ~540 m³/day water
Optimized: 80 kWh(th)/m³ → ~810 m³/day water
Why it matters in the UAE: You convert a liability (waste heat) into strategic freshwater, cutting grid energy and tanker water dependence.
---
C) Water → food: Organic aquaponic tunnels
What it is: Merlin FRP agrotunnels (airtight, antibacterial, CO₂-enriched) running aquaponics (fish + plants in recirculation).
How MD water is used:
As make-up water (losses ~1–2%/day of system volume).
For cleaning/processing; surplus can serve community irrigation.
Scale linkage: One tunnel typically needs ~0.7–0.8 m³/day make-up.
From the 5 MW example above, even the conservative ~325 m³/day could support ~430 tunnels of aquaponics (ample headroom for a phased farm cluster).
What to grow:
Cash-flow: roses, microgreens, premium herbs (UAE pays a premium).
Staples: kale/leafy greens for steady B2B retail.
Pharma/beauty: aloe, turmeric; optional CBD where compliant.
---
Put together: the Green DC triad
1. FRP + earth shelter reduces cooling load (lower PUE, smaller plants).
2. Waste heat drives MD to generate water (and/or pre-heat solar stills).
3. Water feeds aquaponics, producing organic food and ESG impact.
---
High-level numbers (per 5 MW IT block, indicative)
Cooling savings: Envelope + controls can trim non-IT loads by ~30–60%, improving PUE by ~0.10–0.15.
Water output: ~325–810 m³/day from MD (depending on STEC).
Farm linkage: Enough water to support hundreds of tunnels; even a 50–100 tunnel starter yields strong annual revenue with short local supply chains.
Carbon & OPEX: Less chiller/compressor work + renewables for pumps = lower electricity and CO₂; MD displaces energy-intensive RO for brackish sources.
---
Deployment roadmap (pragmatic)
Phase 0 – Envelope & cooling
Build liquid-cooled DC with FRP/earth shell; target airtightness and HRV/ERV.
Commission with dry coolers + adiabatic assist; design for higher loop temps to maximize exergy.
Phase 1 – MD pilot
Install a modular MD skid (~50–100 m³/day) on one heat loop; validate water economics & fouling control.
Add ZLD/UV-TiO₂ polishing and brine plan (e.g., mineral harvesting or controlled evaporation).
Phase 2 – Farm starter
Commission 10–20 tunnels (cash crops + leafy greens mix).
Close the loop: MD water → aquaponics; fish waste → nutrients; farm waste → compost/biogas (optional).
Phase 3 – Scale-out
Expand MD to >300 m³/day and tunnels to 50–100+; integrate community sales, F&B, hotel channels.
---
KPIs to watch
PUE (target ≤ 1.15 liquid-cooled with FRP/earth).
kWh(th)/m³ of MD (trend toward ≤ 120).
m³/day water production vs IT load.
Farm EBITDA/tunnel and net margin %.
CO₂ avoided (cooling + desal vs baseline).
Onsite water % of total (resilience metric).
---
Risks & mitigations
Membrane scaling/fouling: robust pre-treatment, periodic cleaning, anti-scalant compatible with ZLD goals.
Brine handling: plan for concentration + mineral recovery or evaporation ponds.
Humidity & waterproofing (earth-shelter): rigorous drainage/waterproof layers, monitored vapor control.
Operations skill: staff training for MD and aquaponics; design for modularity and easy maintenance.
---
Bottom line
Merlin’s earth-sheltered FRP turns the data center into a low-cooling-load machine; membrane distillation upgrades waste heat into freshwater; and aquaponic tunnels turn that water into recurring, local, organic food revenue. The result is a PUE-lean, water-positive, food-producing data center campus—ESG-ready and commercially compelling in the UAE.
